55-Standard COB led strip

Model COB led strips 320led/m 8W/m

(P/N:TB08-COB320W)

Inquiry Now

Feature:

1. Completely seamless light, no led dot and hot spots.

2. Innovative design on circuit board for rough bending.

3. High efficiency of 100lm/W.

4. CRI>90, Natural color reproduction of illuminated objects.

5. Slight Voltage drop, High brightness consistency.

5. Extensive illumination thanks to a large beam angle of 180°.

5. 5 Years warranty.

Technical Parameters:

Part No. Color Color
Temperature/
Wave length
Voltage Power Lumen/m CRI Viewing
Angle
LED QTY(/m) LED Type PCB width
TB08-COB320W white 6500k 12/24 VDC 8W/m 800lm >90 180° 320 led COB LED 8mm
TB08-COB320WW WW 2700-3000k 12/24 VDC 8W/m 750lm >90 180° 320 led COB LED 8mm
TB08-COB320NW NW 4000k 12/24 VDC 8W/m 800lm >90 180° 320  led COB LED 8mm
TB08-COB320WW WW 2400-2600k 12/24 VDC 8W/m 750lm >90 180° 320 led COB LED 8mm
TB08-COB320R Red 625nm 12/24 VDC 8W/m   >90 180° 320 led COB LED 8mm
TB08-COB320G Green 535nm 12/24 VDC 8W/m   >90 180° 320 led COB LED 8mm
TB08-COB320P Pink 615nm 12/24 VDC 8W/m   >90 180° 320 led COB LED 8mm
TB08-COB320B Blue 460nm 12/24 VDC 8W/m   >90 180° 320 led COB LED 8mm
TB08-COB320IB Ice Blue 484nm 12/24 VDC 8W/m   >90 180° 320 led COB LED 8mm
TB08-COB320Y Yellow 2000-2200k 12/24 VDC 8W/m 680lm >90 180° 320  led COB LED 8mm
TB08-COB320O Orange 1500-1700k 12/24 VDC 8W/m 680lm >90 180° 320 led COB LED 8mm

Cutting length 50mm 16LEDs working temperature -25~+60°C
IP Rate IP33/IP67/IP68 Max Run 24V: 5 meters (one end)
Installation Adhesive 3M tape Dimmable Yes
Cerfication CE and RoHS complicant Warranty 5 Years

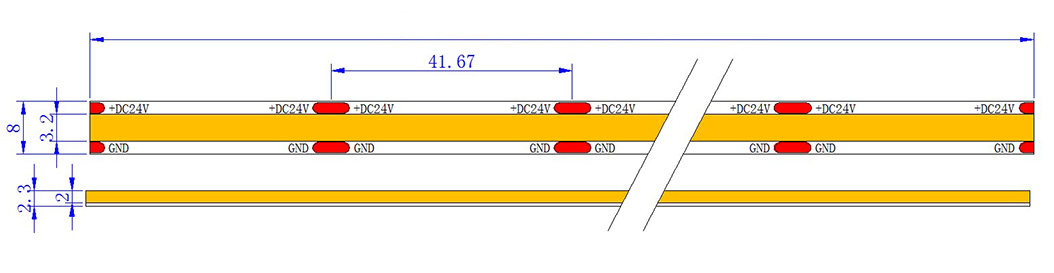

Dimension(mm) :

Dimension

Application:

1. High quality residential lighting.

2. Cabinet lighting.
